HATINA GP

Digital Mixed Signal

EMPOWERED BY:

Kronos Logo
Kronos is a Software Toolset, which generates better and faster Test Programs, through automatic translation of test descriptions to code.

The HATINA GP is designed for testing complex Smart Power ICs and SoCs. Recommended for high parallelism.

HATINA GP is the ATE system designed to meet the characterization needs of analog and mixed-signal devices for production testing.
Thanks to a modular mainframe with up to 10 slots, you can integrate multiple instruments into a single, flexible, and scalable platform, adaptable to any type of requirement.
Control is managed through an intuitive graphical software interface that requires no programming skills, making it ideal for both Designers and Test Engineers (TE).

Reasons Why

Integrated multiplexer reduces load board complexity
>99% parallel test efficiency provides best in class COT
Modular instrumentation aligns to market and technology needs
A smaller footprint and less power improve ROI
Automated test program generation with KRONOS

Product Presentation

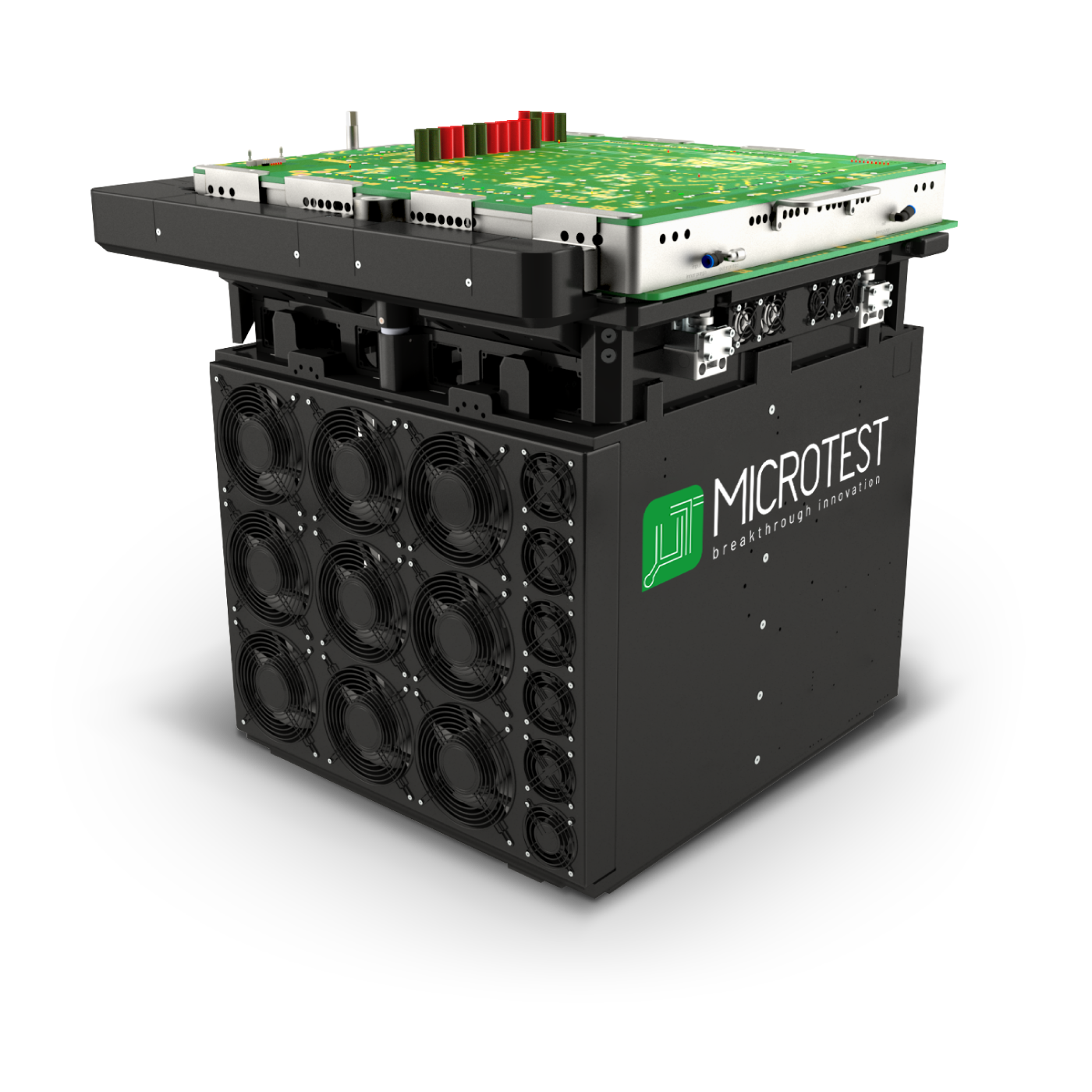

HATINA GP is a general-purpose ATE system developed by Microtest for high-parallelism testing of ASICs, PMICs, and Smart Power ICs/SoCs.

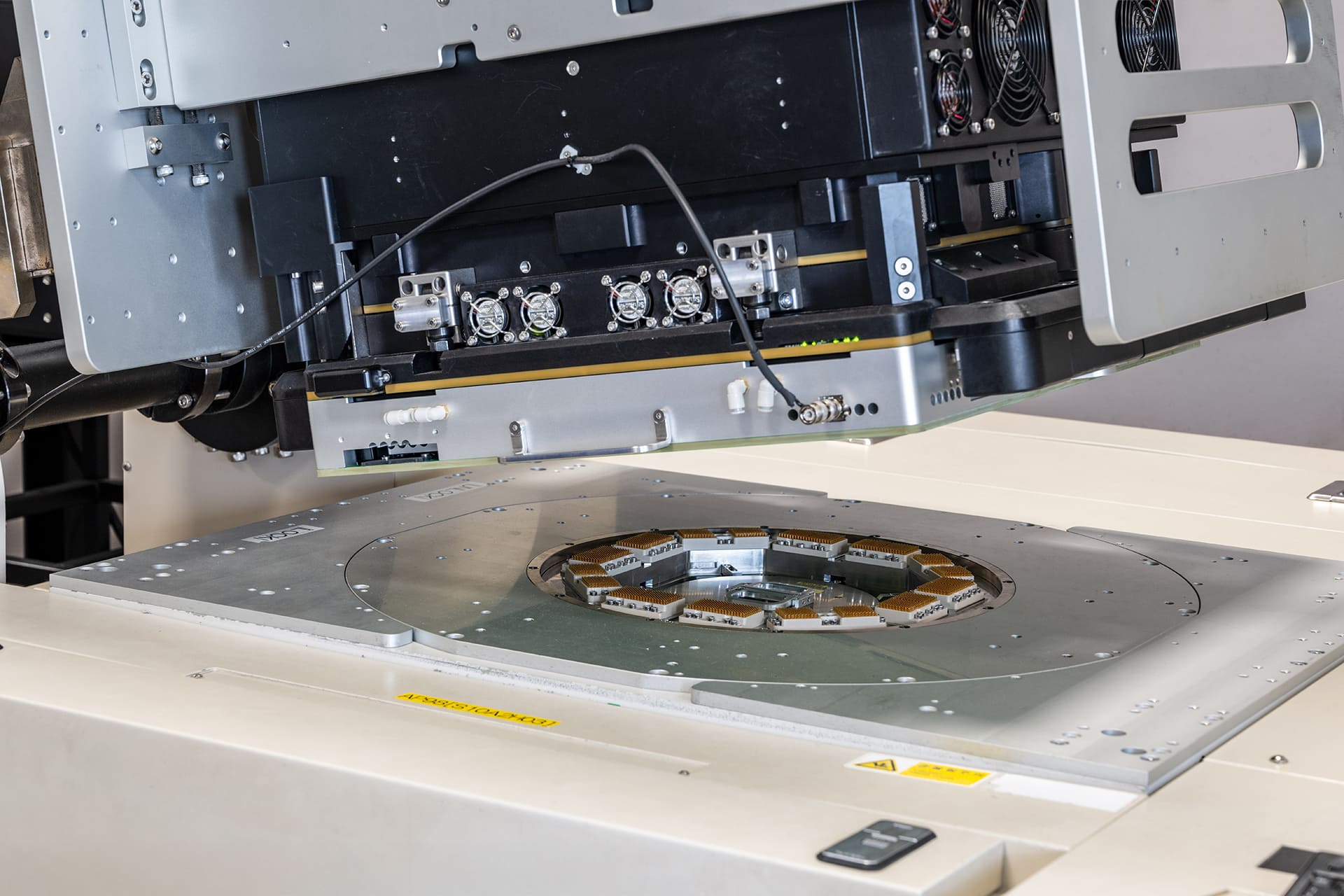

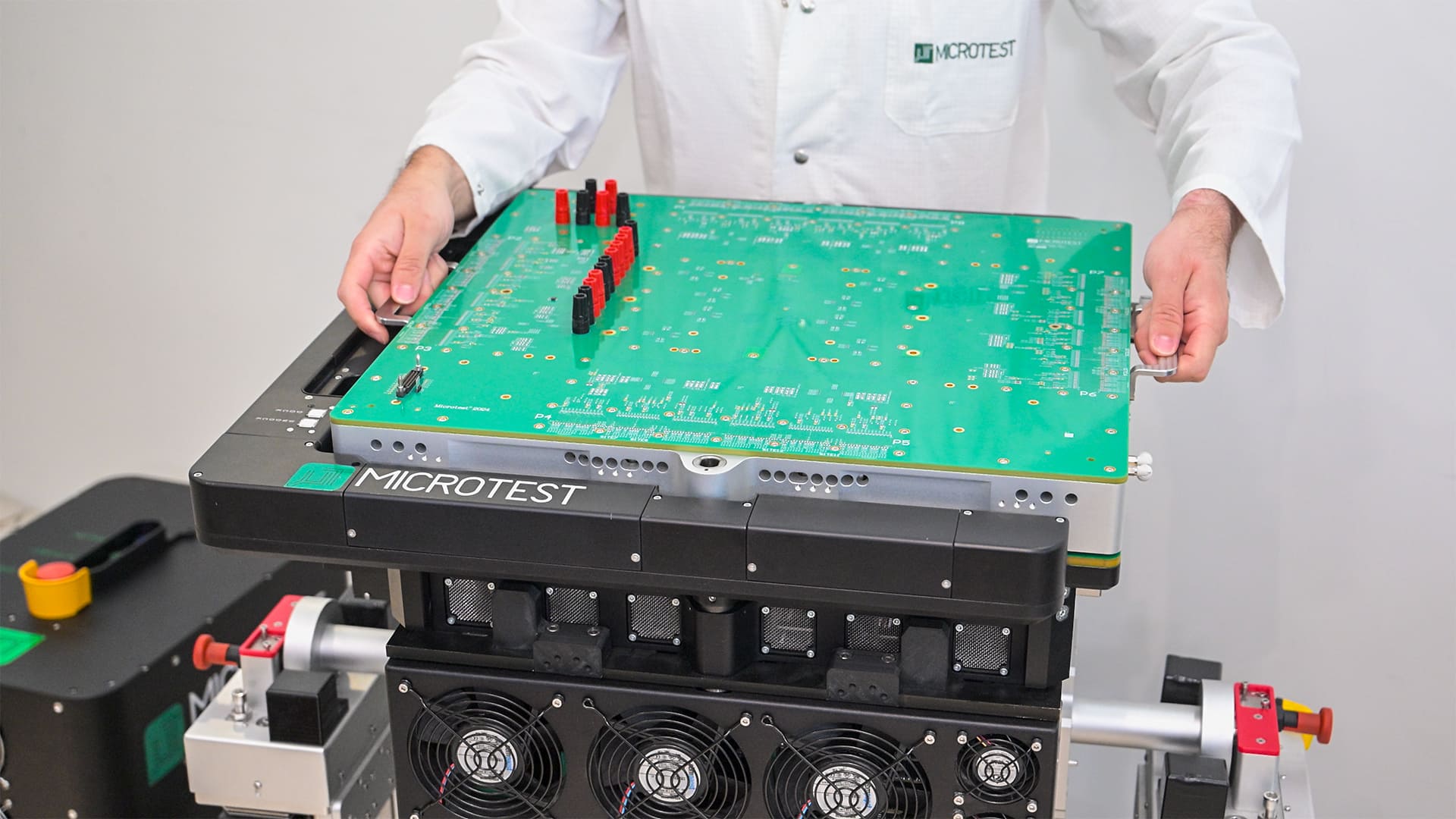

Designed for both wafer-level and packaged device applications, the system integrates modular resources for DC testing, digital signals, and complex measurements. Its intelligent resource management maximizes efficiency and reduces test costs.Thanks to built-in multiplexers, HATINA GP simplifies load board design, enhancing reliability and minimizing footprint. The architecture supports up to 10 configurable slots.
Per-slot resources include digital channels up to 800 MHz, high-current DPS, precision measurements with 20 pA resolution, and advanced instruments such as AWG, LCR meter, and digitizer.The system is compact, energy-efficient, and easily integrable into automated production environments.
Kronos software enables rapid, automated development of test programs, optimizing time-to-market.

HATINA GP is an ideal solution for production environments that demand flexibility, scalability, and high performance, particularly in the automotive, industrial, and smart power sectors.

FEATURES

HATINA GP

Dimensions

D⨯W⨯H
640 mm ⨯ 670 mm ⨯ 700 mm

Analog/Power

DCS sources
DCS HP: 16 channels, ± 80V / ± 10A, floating
DCS LP: 160 channels, - 80V / +110V @ ± 200mA
DCS MP: 80 channels, - 80V / +110V @± 4A

Digital

Digital Channels
Up to 256 Dig ch per slot 200/400 MHz,
256 CH per board, PPMU, active load
64M Pattern Memory per pin (up to 128M)
64 M vectors DSIO / HRAM memory depth per pin

Measurements Instruments

AWG/TMS/Differential Voltage Meter
16 channels 400MSPS AWG
16 channels 80MSPS Digitizer, TMS
16 Differential Voltage Meter

Hatina GP Datasheet
