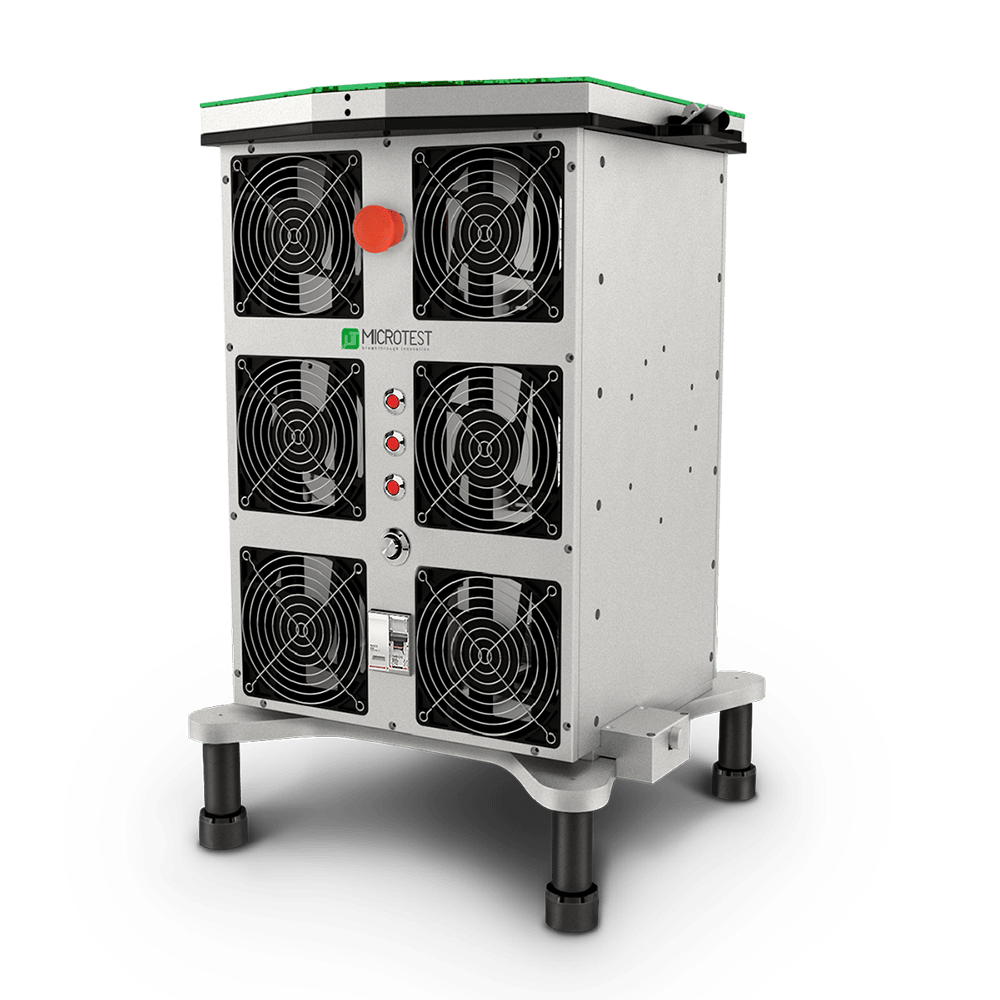

Hatina 4S

VERY COMPACT SOLUTION FOR TESTING MEMS AND MAGNETIC SENSORS

Flexible, low cost ATE, for very high parallel, for testing MEMS devices (Accelerometers, Gyroscopes, MEMS microphones, Pressure, temperature, humidity, gas sensors, etc.)  and magnetic sensors.

Reasons Why

High pin count V/I and DPS
High pin count digital
Integrated mux for extreme flexibility
0-footprint, Low Cost per site
Easy automation integration

Product Presentation

The Hatina 4S by Microtest is a compact, highly versatile ATE (Automatic Test Equipment) platform specifically designed for final test and WS of MEMS devices in high-volume production. Thanks to its modular architecture, it supports stimulus systems for humidity, pressure, and temperature sensors, microphones, magnetometers, and twist-tilt units for accelerometers and gyroscopes. Its high parallelism (scalable up to 140 in ping-pong mode) allows significant throughput improvements and cost-per-site reduction.

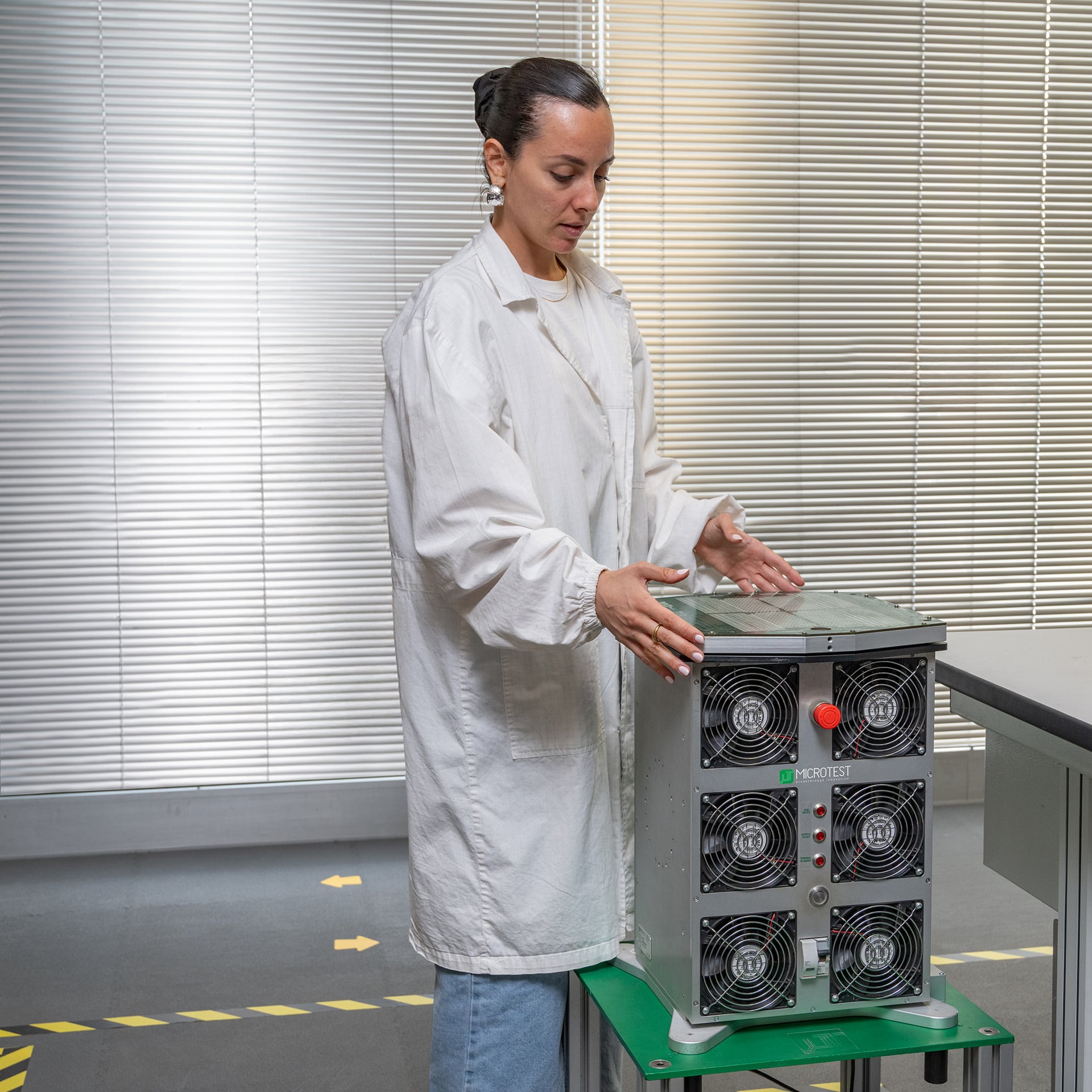

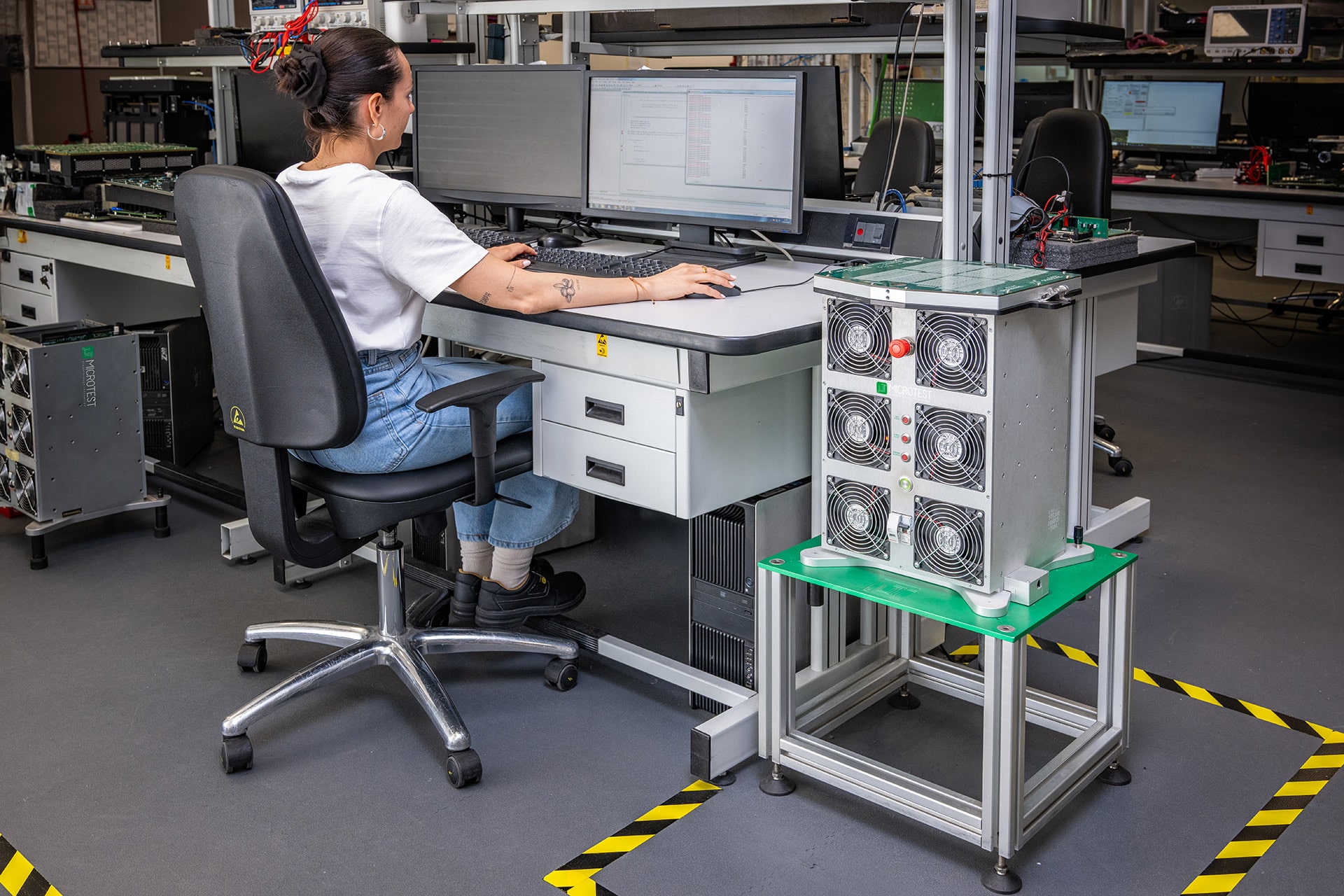

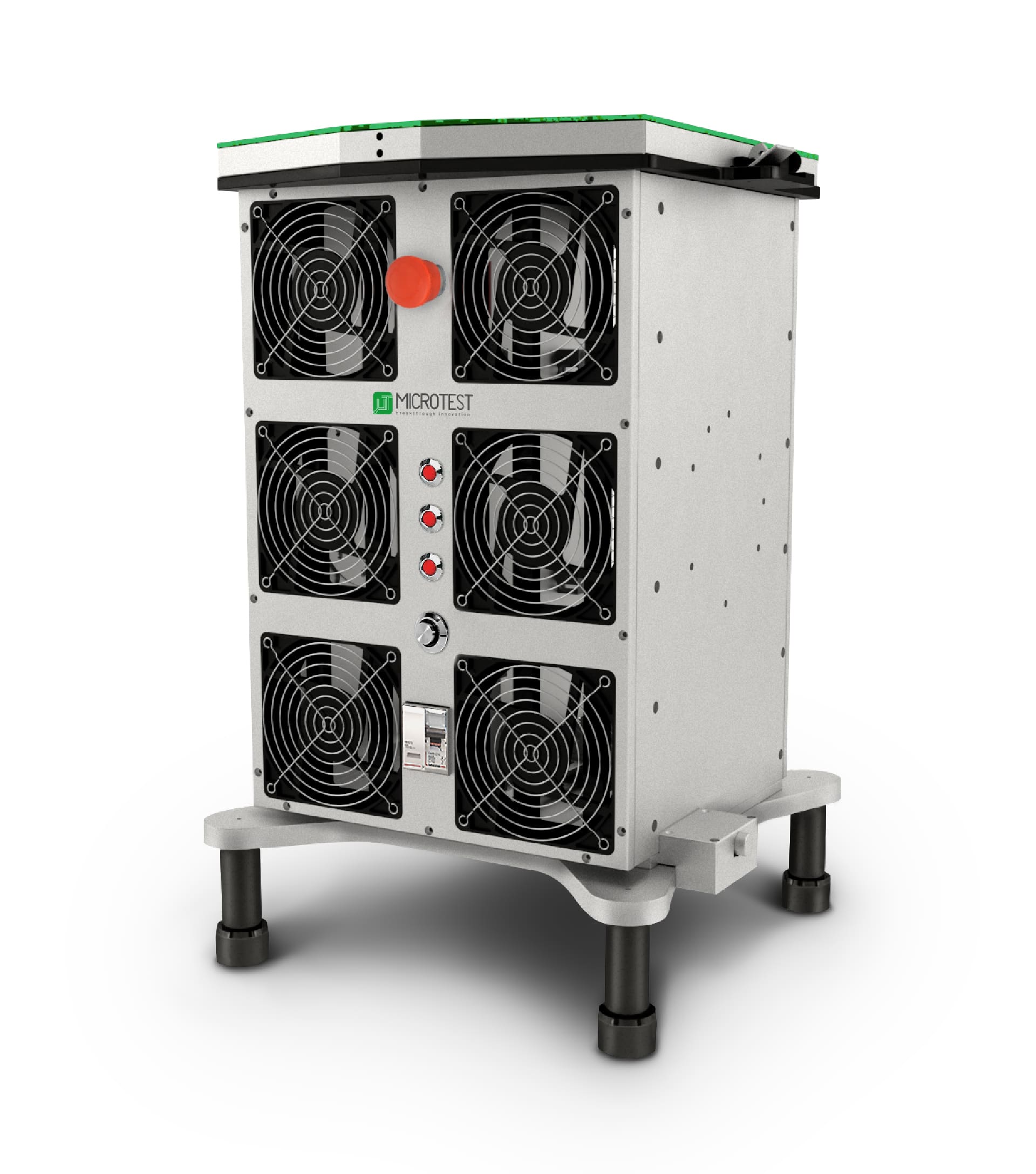

Its minimal footprint (H 538 mm × W 360 mm × D 330 mm) is ideal for integration into existing handlers, ensuring seamless automation compatibility.
Technological highlights include a patented coil-less magnetic field generator (up to 400 Gauss) with 3D rotation, microphone test capability with up to 75 dB SNR, 140 dB SPL, <20 dB noise floor, and <0.1 dB accuracy, climatic chambers from –40 °C to +180 °C, and accelerometer/gyroscope modules enabling parallel test on 32 sites, 192 PPMUs, and 320 digital channels.
In short, Hatina 4S is a compact, cost-efficient, and highly parallel test solution for a wide range of MEMS applications as well as magnetic sensors-perfectly suited for improving unit cost and production efficiency in modern test environments.

FEATURES/CONFIGURATIONS

Hatina 4S Sites

Hatina 4S Microphone

Hatina 4S Magnetic

Hatina 4S MEMS

Dimensions

D⨯W⨯H
330 mm ⨯ 360 mm ⨯ 538 mm
330 mm ⨯ 360 mm ⨯ 538 mm
330 mm ⨯ 360 mm ⨯ 538 mm
330 mm ⨯ 360 mm ⨯ 538 mm

Analog/Power

DCS sources
8 DCS @ 1A sources mux in 256 different positions
up to 40 DCS_MP
Voltage range: ±1V, ±3V, ±5V, ±10V; -10V/+30V; -10V/+55V
Current ranges: 20uA, 200uA, 2mA, 20mA, 4A

Digital

Digital channels & PPMU
48 digital channels & PPMU_60mA sources mux in 256 different positions + 20 digital channels no mux – 16 PPMU no mux
320 Digital channels Up to 192 PPMU
New Era board
up to 24 modules: 1 module (20 digital channels) + analog part (16 PPMU )

Measurements Instruments

Microphone64 board
up to 8 audio modules - to test digital & analog MEMS microphones + AWG per site
Rate Table
Control available
