DMT EVO

Digital Mixed Signal (DMT)

EMPOWERED BY:

Kronos Logo
Kronos is a Software Toolset, which generates better and faster Test Programs, through automatic translation of test descriptions to code.

Low-cost, mixed signal, test development ATE system

DMT is designed to meet the characterization needs of analog and mixed-signal devices at every stage of the product lifecycle: from Research & Development (R&D) to pre-production and post-production testing.
Featuring a modular mainframe architecture with up to 5 slots, you can integrate multiple instruments into a single, flexible, and scalable platform, adaptable to any type of requirement.
Control is managed through an intuitive graphical software interface that requires no programming skills, making it ideal for both Designers and Test Engineers (TE).

Reasons Why

Lowest footprint on the market
Automatic code generator (Kronos)
Drastically reduces the time to market
Validation of new ICs in few weeks
Integrated oscilloscope for debug
Up to 5 Slots with Flexible Configuration

Product Presentation

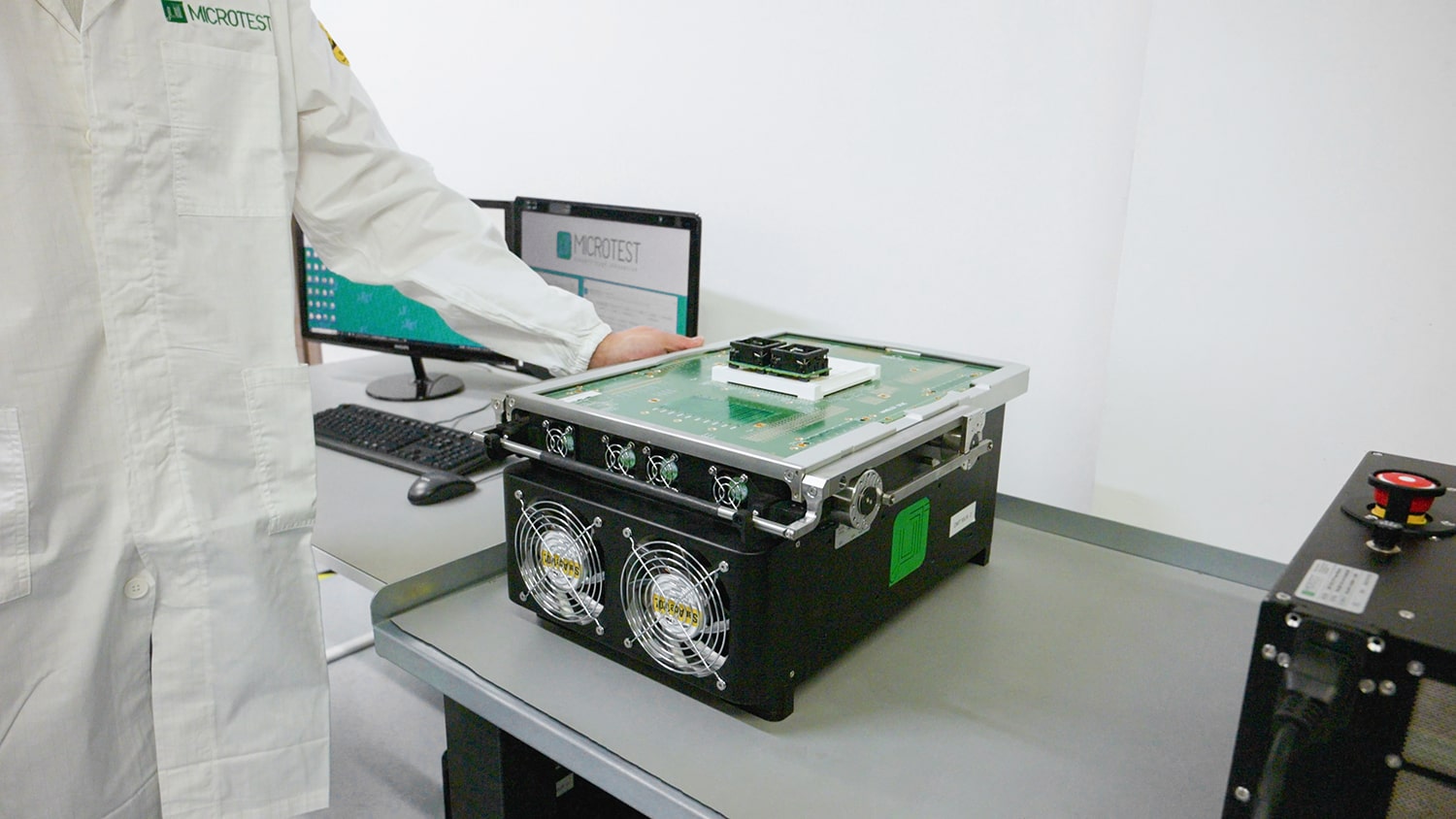

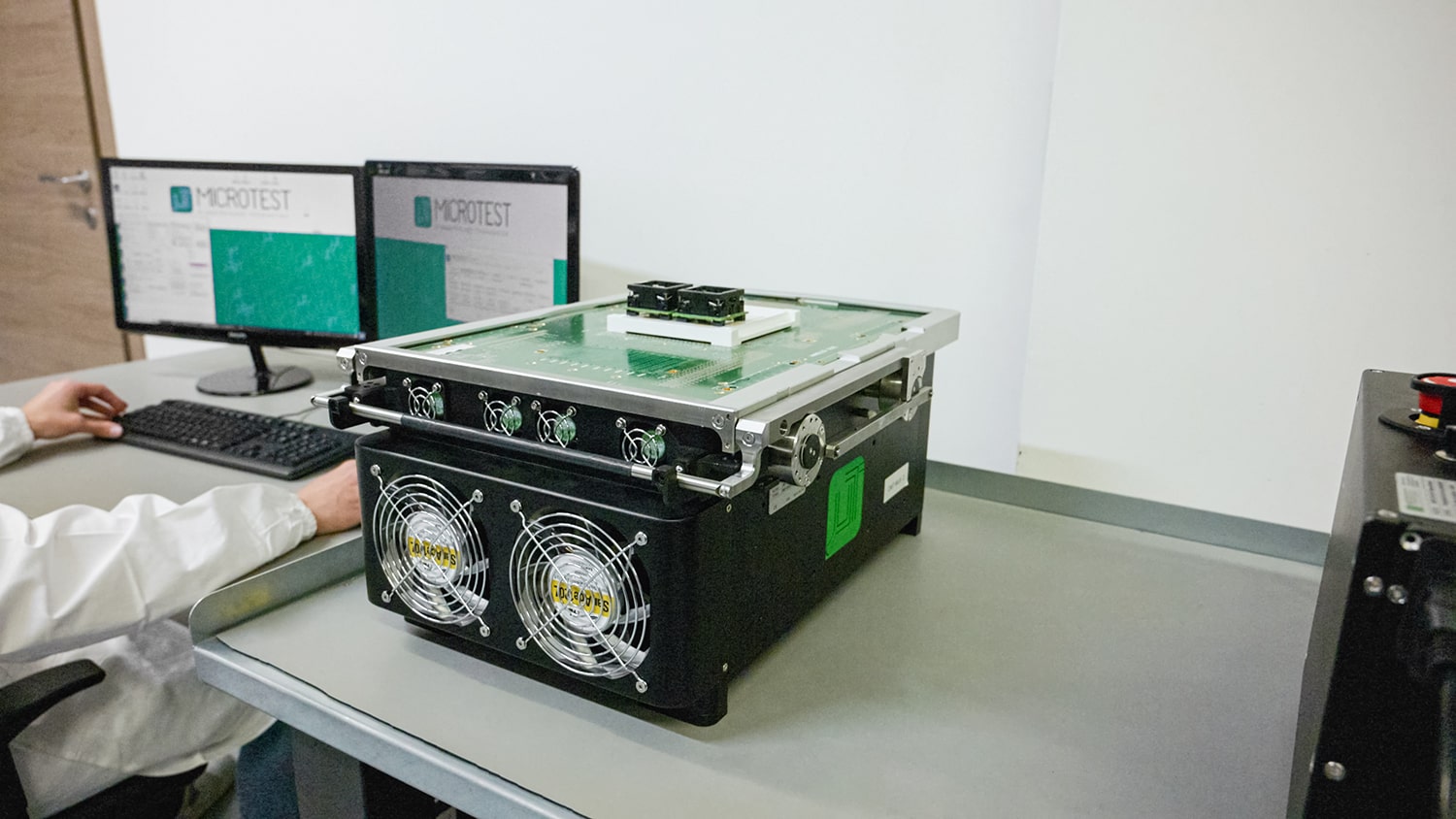

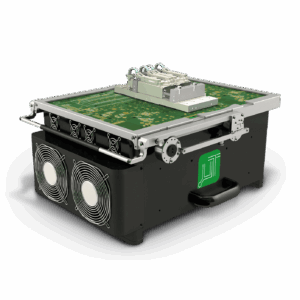

The DMT from Microtest is a compact, mixed‑signal and digital automatic test equipment (ATE) designed for efficient IC validation. Thanks to its ultra‑high hardware integration, it delivers more resources than larger testers while occupying the lowest footprint on the market.

A key feature is Kronos, an intelligent software toolset that automatically converts test descriptions into optimized test code, drastically cutting development time and accelerating time‑to‑market—new ICs can be validated in just a few weeks.
The system supports up to five slots with flexible configurations.
Each slot offers:
DC sources: low‑power (±110 V, ±200 mA), medium‑power (±110 V, ±4 A), and floating high‑power (±80 V, ±10 A)
Digital I/O: up to 256 channels per slot (−1.25 V to 6.75 V, 50 mA drive, active load ±12 mA), with 64 M pattern memory and 32 M DSIO
Time‑measurement unit & differential metering (up to 32 mux4) plus AWG & digitizer (up to 16 per slot).

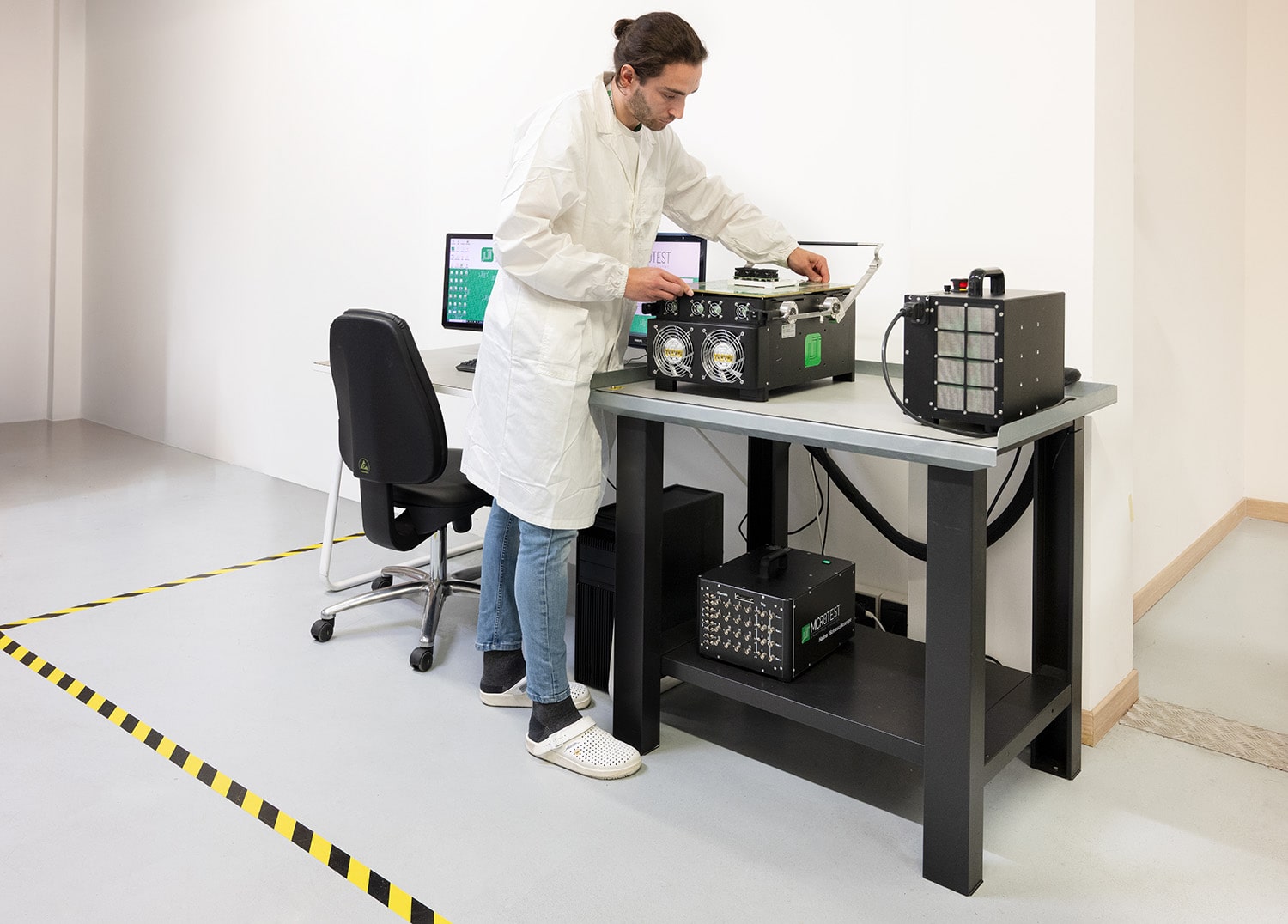

Measuring just 230 mm × 350 mm × 500 mm, the DMT excels in lab or pre‑production environments where space is tight, resources must be dense, and testing must be fast and modular.

FEATURES

DMT EVO

Dimensions

D⨯W⨯H
500 mm ⨯ 350 mm ⨯ 230mm

Analog/Power

DCS sources
DCS HP: 8 channels, ± 80V / ± 10A, floating
DCS LP: 80 channels, - 80V / +110V @ ± 200mA
DCS MP: 40 channels, - 80V / +110V @± 4A

Digital

Digital Channels
Up to 256 Dig ch per slot 200/400 MHz
256 PPMU per board

Measurements Instruments

AWG/TMS/Differential Voltage Meter
8 channels 400MSPS AWG
8 channels 80MSPS Digitizer, TMS
8 Differential Meter
Pico Meters
Current Range from 2nA to 2uA (up to ±20pA accuracy)

DMT Datasheet
