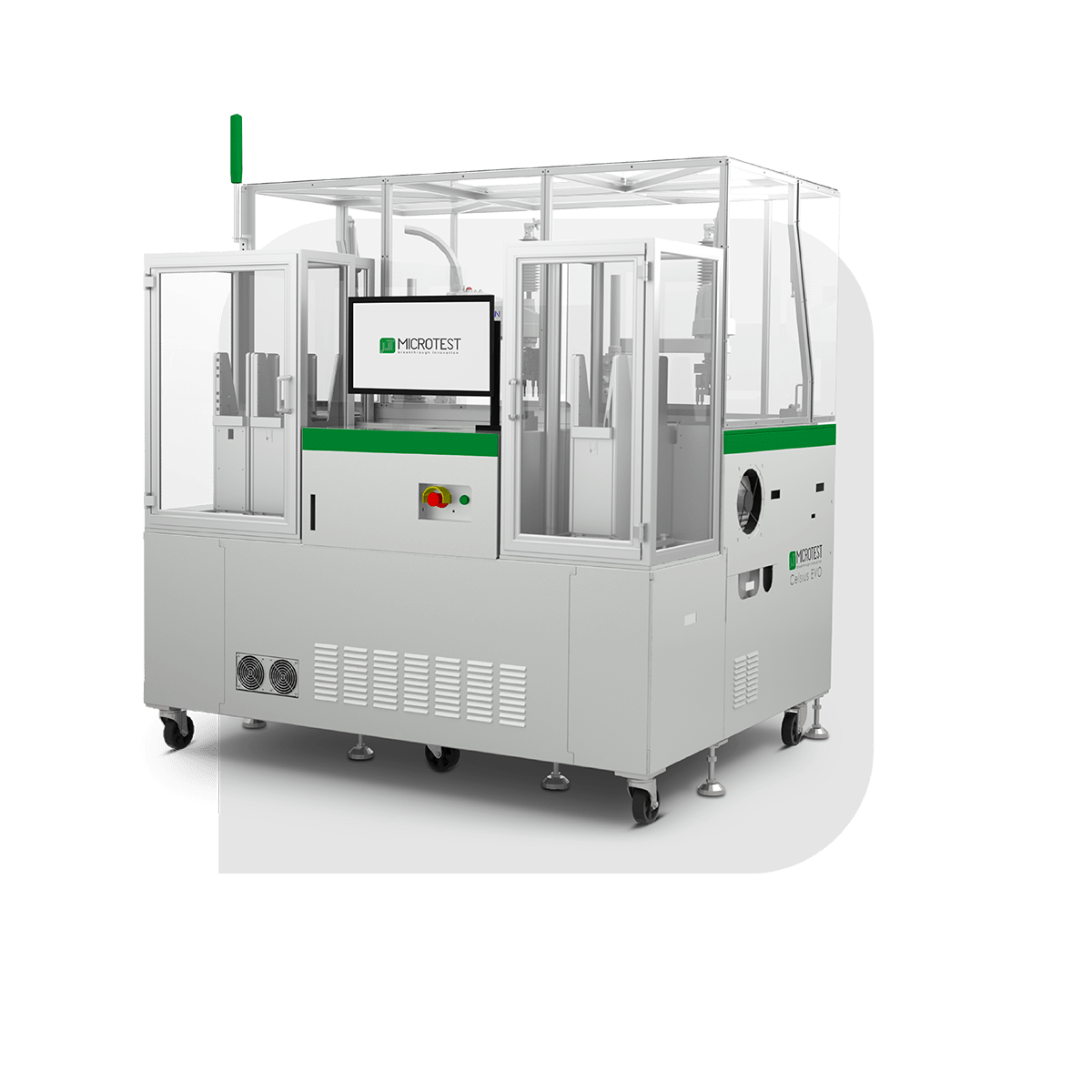

Celsius EVO

HANDLER WITH HIGH THROUGHPUT IN A COMPACT SPACE

Celsius EVO is a characterization pick and place handler with highly dynamic temperature control system that can bring and keep temperature of the DUT up to 150°C and down to -45°C during tests.

Reasons Why

Incredibly faster still maintaining a small footprint
Innovative heater technology for higher temperatures
Automatic visual inspection and positioning correction
Highly dynamic temperature control system during tests (up to 150° C and down to -45°C)
No need to condition the entire workspace
Time and energy saving solution and reduced need of conditioned air

Product Presentation

The Celsius EVO is a high-throughput pick‑and‑place handler with dynamic temperature control, engineered for fast and precise characterization of semiconductor devices. Closing the gap between speed and thermal performance, it can heat DUTs up to 150 °C and cool them to −45 °C, achieving rapid thermal ramp-up/cool-down without conditioning the entire handler environment.
Encased in a compact form, the Celsius EVO redefines handler design by integrating innovative heater tech and automated visual positioning, delivering high-temperature accuracy and consistency while saving time and energy. Its fast cycle times and minimal footprint make it ideal for cleanroom use and Industry 4.0 production lines.

This handler supports fully automated pick‑and‑place workflows and seamlessly integrates with a wide range of ATE systems—ideal for mixed-signal, MEMS, and power-device testing across automotive, industrial, aerospace, and medical sectors.
With per-DUT thermal control and visual correction loops, it ensures both mechanical precision and thermal uniformity.

In summary, Celsius EVO offers a smart balance of speed, thermal agility, accuracy, and compactness—ultimately accelerating device characterization while improving test efficiency, energy use, and space utilization.

FEATURES

Celsius EVO

Number of test sites
4
Consumption
Compressed Air: l/min 200 @ 8 bar
DUT dimension - (Customizable also for chipboards)
min.: 2x2
max.: 30x30
Kit
Metal frame (preconditioning) + pickers (required a picker for each different package for multisite case. Standard S, M, L, for single site) ~10 minutes required to change setup
Parallelism
Up to 4 [required change-kit]
Temperature Control
3T handler: -45°C/+150°C ± 3°C
Tester Connection
PTB, horizontal docking

Dimensions

D⨯W⨯H
1600 mm ⨯ 2100 mm ⨯ 2000 mm

Celsius EVO Datasheet
