Vip Ultra

New-gen, high-throughput ATE configurable for complex smart power devices, SiC, and GaN power discrete products

New-gen Automatic Test Equipment configurable for Si, SiC and GaN power products; high side and low side Driver ICs, IGBT, Power MOSFETs, Power ICs.

Reasons Why

Lowest TCO for power products
Double throughput
Minimum footprint

Product Presentation

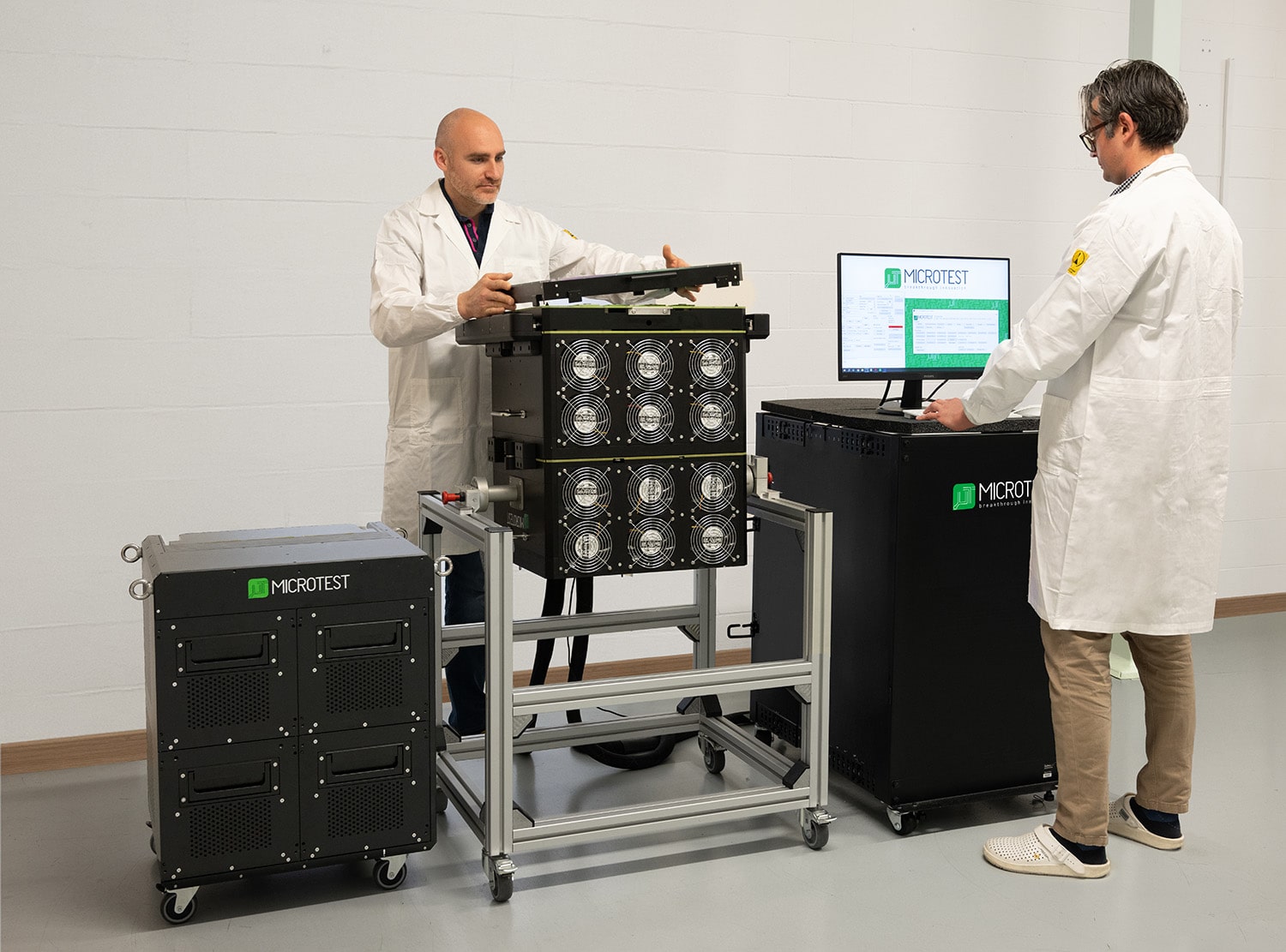

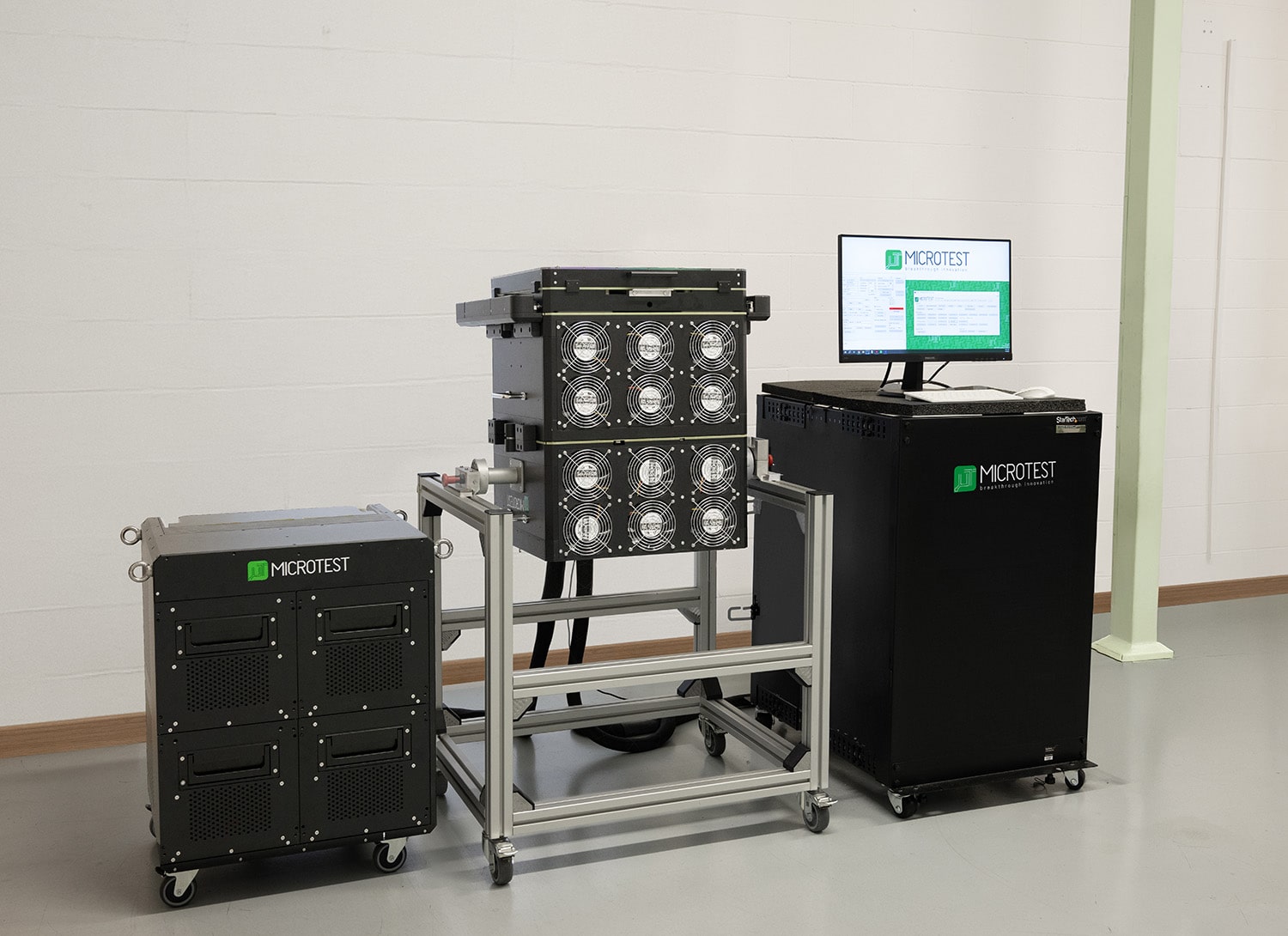

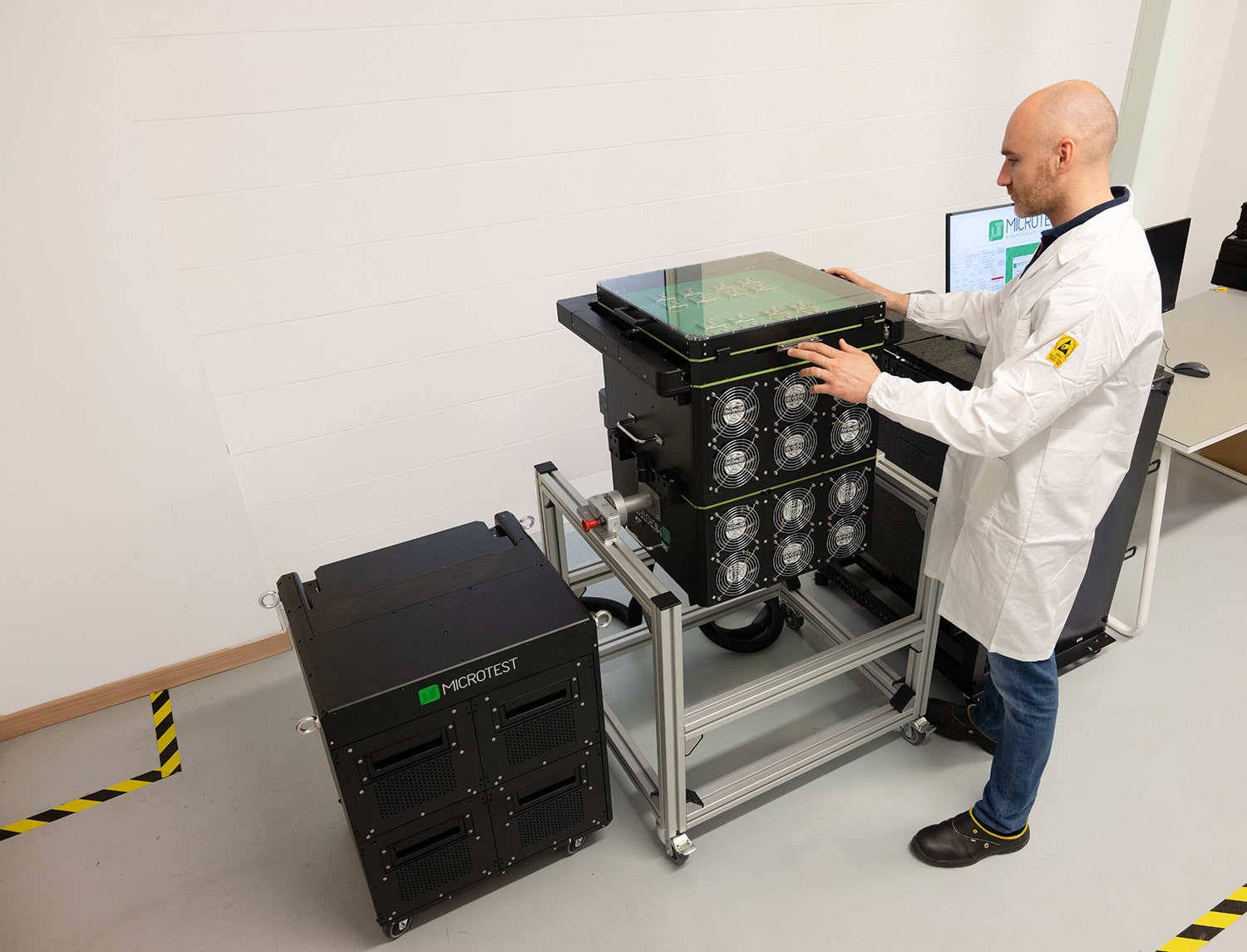

The VIP Ultra by Microtest is a next-generation, high-throughput ATE (Automatic Test Equipment) engineered for power-semiconductor testing—ideal for Si, SiC, GaN discrete devices, power modules, and high-/low-side driver ICs.
Designed for cleanroom integration, it delivers exceptional parallel performance metrics, scaling from 48 sites at 80 V and 250 A to 16 sites at 4 kV and 250 A, ensuring double the throughput with minimal footprint and low total cost of ownership.
Its versatile configurations include DCS sources (±80 V, ±4 A across up to 48 channels), programmable DC load sinks/sources (±250 A on 48 channels), 320 digital lines (0–5.5 V, 50 mA with DSIO memory and per-channel PPMU), 48 time-measurement units, 48 LCR meters, 64 PPMUs, and pico-meter accuracy down to 20 pA.
These resources enable a comprehensive suite of DC and energy-stress test capabilities—making VIP Ultra the only platform on the market offering this full set for WBG device characterization.
Measuring 647 × 638 × 702 mm, VIP Ultra’s compact form fits seamlessly within existing probers and handlers. Launched at APEC 2025, it has been recognized as “Product of the Month” by Bodo’s Power Systems, solidifying its status as a leading solution for wide-bandgap semiconductor testing.
In summary, VIP Ultra combines unmatched scalability, compact design, and exhaustive test functionality across all power-device categories—offering manufacturers a superior tool for maximizing throughput, efficiency, and confidence in WBG technologies.

FEATURES/CONFIGURATIONS

VIP Ultra STD 80V

VIP Ultra HV 1.7kV

VIP Ultra HV 4kV

Number of test sites
48
32
16

Dimensions

D⨯W⨯H
647  mm ⨯  638  mm ⨯  702 mm
647  mm ⨯  638  mm ⨯  702 mm
647  mm ⨯  638  mm ⨯  702 mm

Analog/Power

DCS sources
DCS MP: 48 channels, 80V @± 4A
DCS MP: 32 channels, 80V @± 4A
DCS MP: 16 channels, 80V @± 4A
High Voltage Supply
STD 80V @250A (48 sites)
1.7kV @250A (32 sites)
4kV @250A (16 sites)
Load Prog Module
High current Sink/Source up to 250A@80V + up to 48 TMU & differential meter circuit
High current Sink/Source up to 250A@80V + up to 32 TMU & differential meter circuit
High current Sink/Source up to 250A@80V + up to 16 TMU & differential meter circuit

Digital

Digital Channels
Up to 320 digital channels
Up to 64 PPMU
Up to 320 digital channels
Up to 64 PPMU
Up to 160 digital channels
Up to 16 PPMU
Floating Digital Driver
up to 48: - 5V to 18V
up to 32: - 5V to 18V
up to 16: - 5V to 18V

Measurements Instruments

Inductive & Resistive Loads
Custom Board
Custom Board
Custom Board
LCR Meters
48
32
16
Pico Meters
Up to 48 picoA-meter
Current Range from 2nA to 2uA (up to ±20pA accuracy)
Up to 32 picoA-meter
Current Range from 2nA to 2uA (up to ±20pA accuracy)
Up to 16 picoA-meter
Current Range from 2nA to 2uA (up to ±20pA accuracy)
